Beelink SEA Ι. Ο Δράκος επανέρχεται;

[alambi]

Beelink SEA Ⅰ Realtek 1295DD Chip, DDR4 2GB eMMC 16GB, Support HDMI IN PIP Video Recording and SATA Hard Disk

Προπώληση στο GEARBEST - 2GB+16GB EU PLUG 95,09 ευρώ

Προπώληση στο GEARBEST - 2GB+32GB EU PLUG 104,14 ευρώ

Αποστολή προιόντων απο 1η Μαρτίου ...........

Launch Date：January , 2017
Product model：SEAⅠ

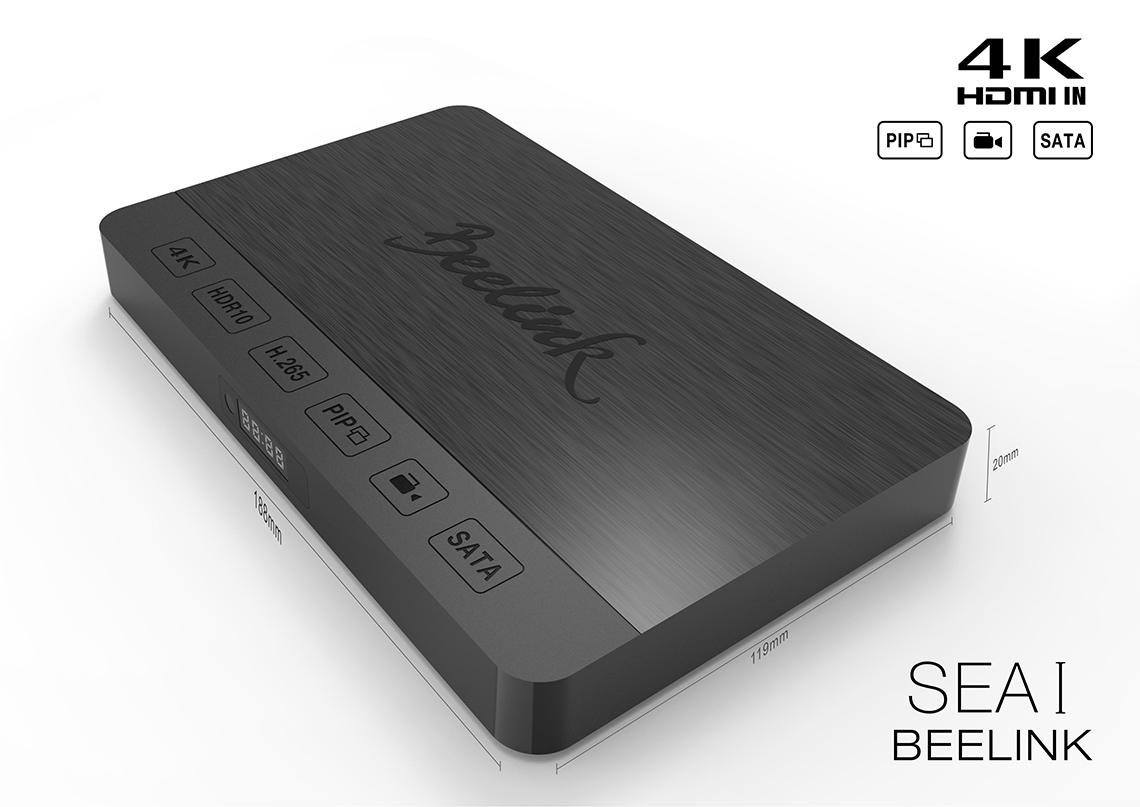

Dimension：188*119*20mm
Processor Number：Realtek 1295DD

•System Config
OS：Android 6.0
Language：Multi -language
CPU：Realtek 1295 DD Quad-Core ARM Cortex-A53
GPU：ARM Mali-T820MP3 GPU—Mali-450 8-core equivalent
RAM：DDR4 2GB
ROM：Onboard eMMC Flash 16GB
Ethernet：1000Mbps LAN
WIFI：IEEE 802.11a/b/g/n/ac, 2.4G+5.8G
BT：BT 4.0
Antenna：Built-in antenna for WIFI
Expand Memory：SD Card (support 128GB)

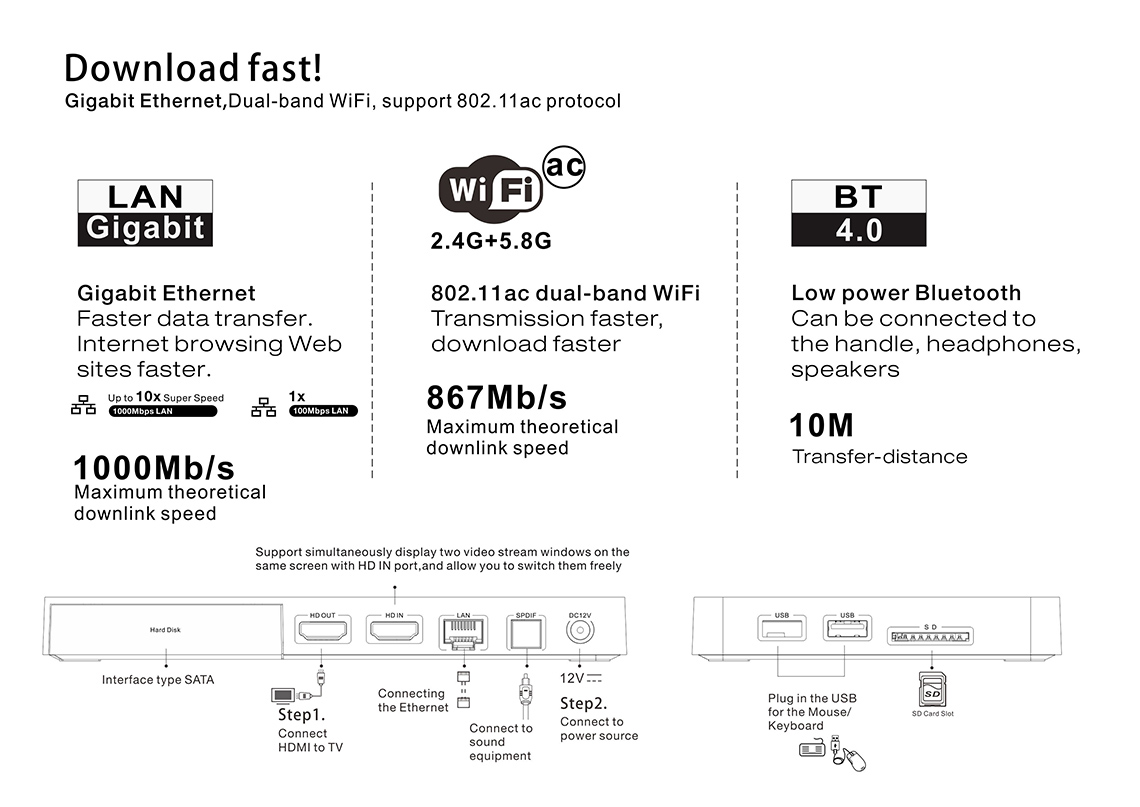

• Button & Ports
Button：Not Power Button（Connecting the power supplies，automated system operation）
DC-in：1*DC in Port
SPDIF：1*S/SPDIF Port
RJ45：1*RJ45 (network connection) Port

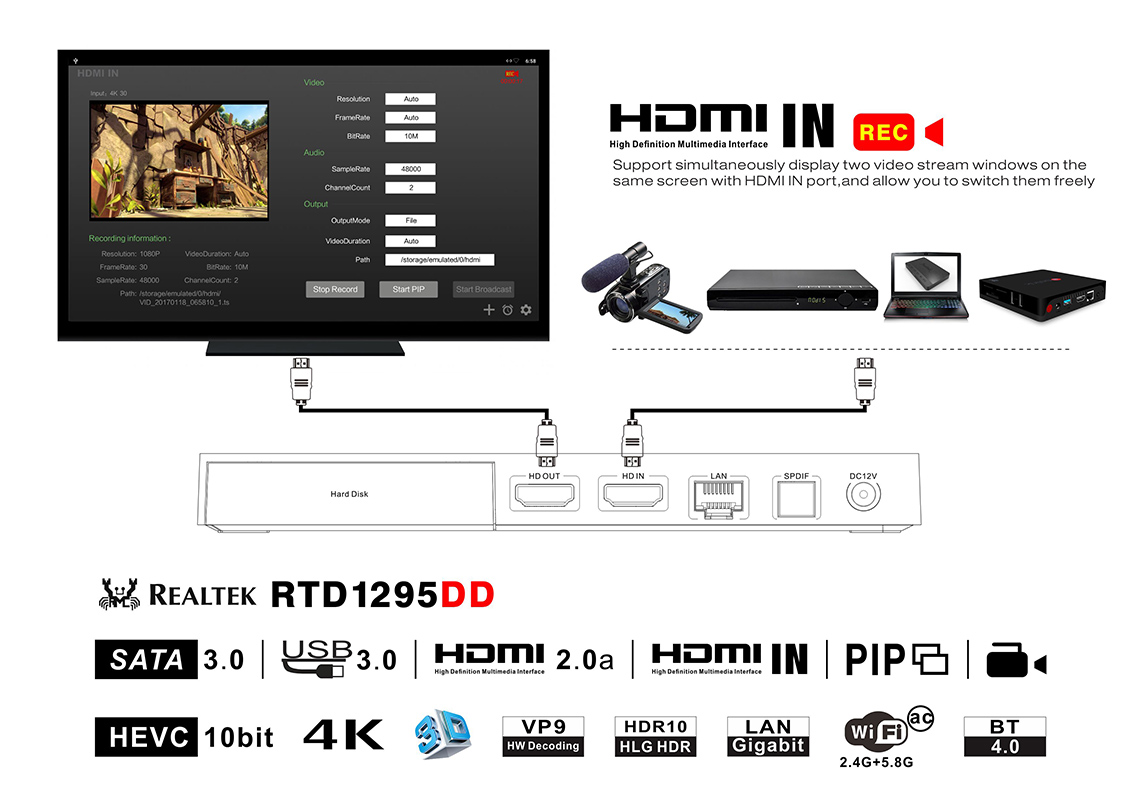

HDMI IN：1*HDMI IN Type Port
HDMI OUT：1*HDMI OUT Type Port
USB2.0：1* Standard USB Port
USB3.0：1* Standard USB Port
SD Card Slot：1* SD card slot
Power LED：1* power LED
Hard disk：1* Standard hard disk SATA port

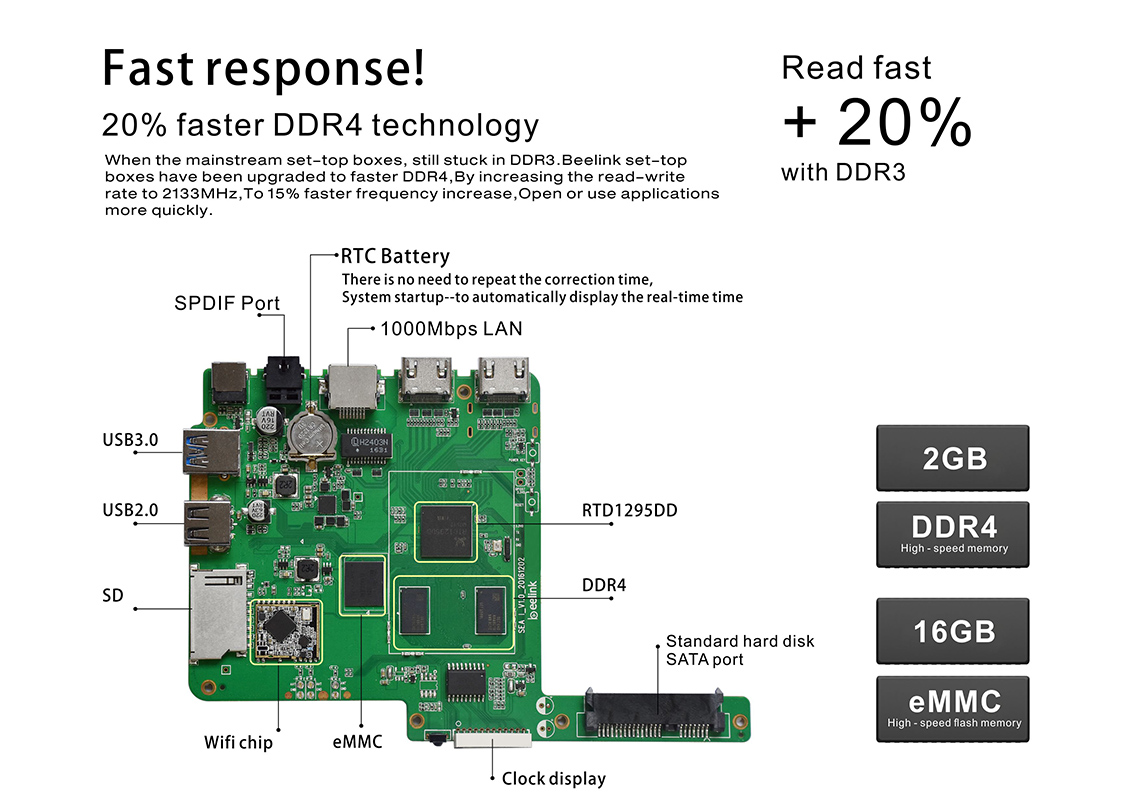

•RTC
Real Time Clock(RTC Battery)
There is no need to repeat the correction time,System startup--to automatically display the real-time time

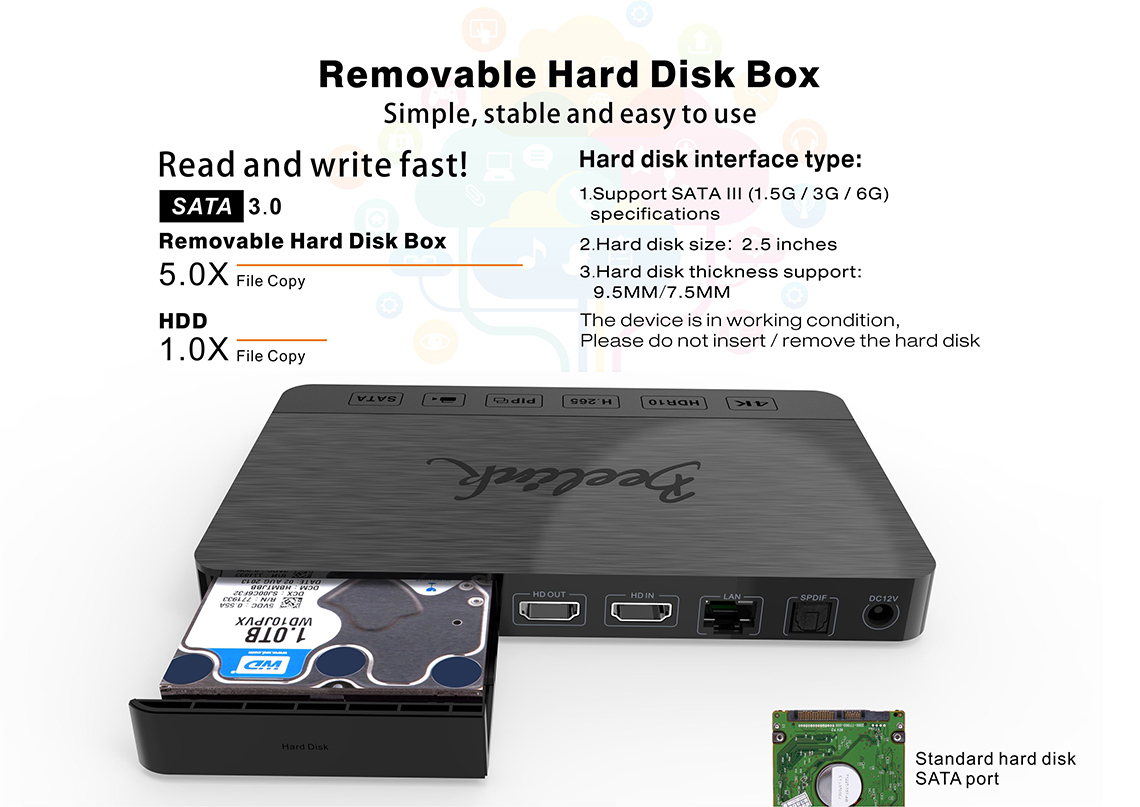

•Hard disk specifications
The device is in working condition, Please do not insert / remove the hard disk
Hard disk interface type: Support SATA III (1.5G / 3G / 6G) specifications
Hard disk size：2.5 inches
Hard disk thickness support: 9.5MM /7.5MM

•Powerful codec capabilities
UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+
FHD 1080p 60fps HW encoding, supports H.264

•Video/Picture Decoding
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC [email protected] up to 4Kx2K@60fps H.264 AVC [email protected] up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P @60fps
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to l080P@60fps
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
RealVideo 8/9/10 up to 080P@60fps
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918)
Supports JPEG thumbnail,scaling,rotation and transition effects
Supports*.mkv,*.wmv,*.mpeg,*.dat,*.avi,*.iso,*mp4, *.rm and*.jpg file formats

•Video Post-Processing Engine
1.Supports HDR10 and HLG HDR processing
2.Motion adaptive 3D noise reduction filter
3.Advanced motion adaptive edge enhancing de-interlacing engine
4.3:2 pull-down support
5.Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing
6.Programmable color management filter(to enhance blue,green,red,face and other colors)
7.Dynamic Non-Linear Luma filter
8.Deblocking filters
9.Programmable color matrix pipeline
10.video mixer: 2 video planes and 2 graphics planes per video output

•Video Output
1.Built-in HD 2.0a transmitter including both controller and PHY with CEC,HDR and HDCP 2.2,4Kx2K@60 max resolution output
2.CVBS 480i/576i standard definition output
3.Supports and standard SD/HD/FHD video output formats: 480i/p,576i/p,720p,1080i/p and 4Kx2K

•Audio Decoder and Input/Output
1.Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 5.1 down-mixing
2.Built-in serial digital audio SPDIF/IEC958 output and PCM input/output
3.Built-in stereo audio DAC
4.Stereo digital microphone PDM input
5.Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

•Power management
Power management Adapter: DC12V 1.5A(100-240V,50/60Hz)

•Environment
Work Environment :5°C -- 35°C，30%--90% Humidity
Storage Environment :-20°C -- 60°C，10%--90% Humidity

Product packing list:
1.Beelink SEAⅠTV Box*1
2.HDMI cable * 1
3.Power Adapter DC12V 1.5A(100-240V,50/60Hz)*1
4.Operations guide*1

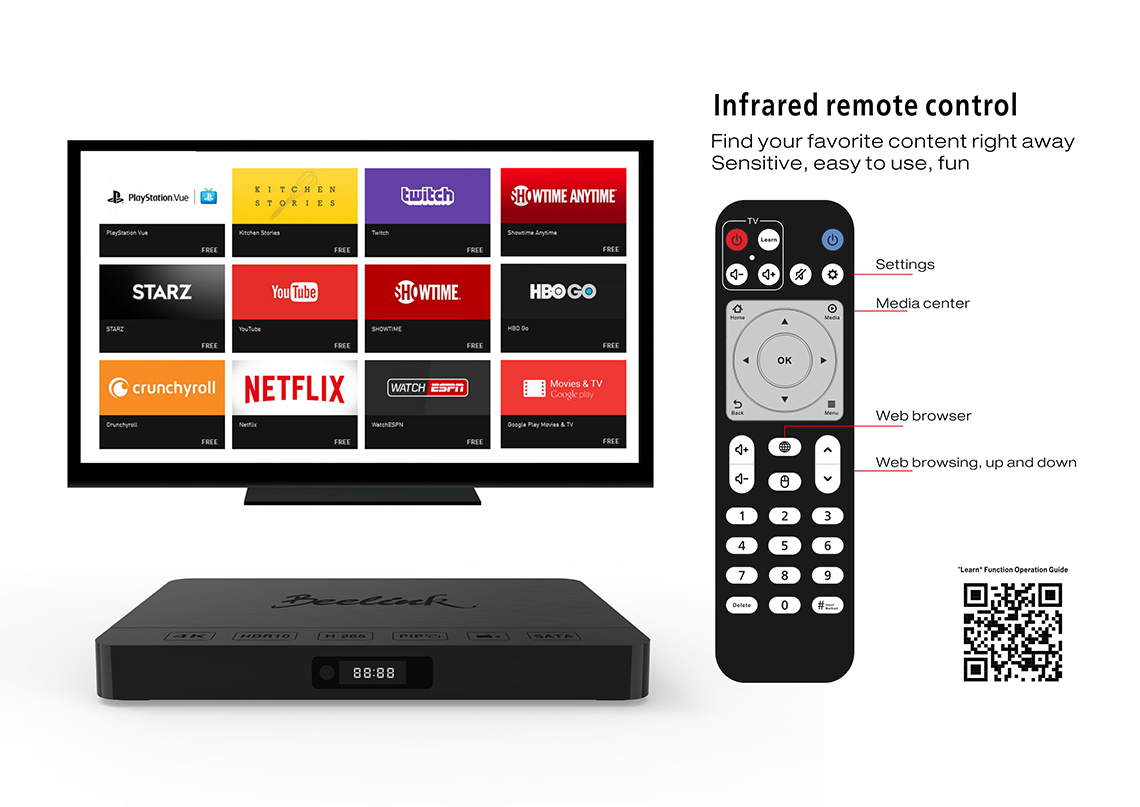

5.Infrared remote control*1

Packing size: 196 * 121 * 75mm

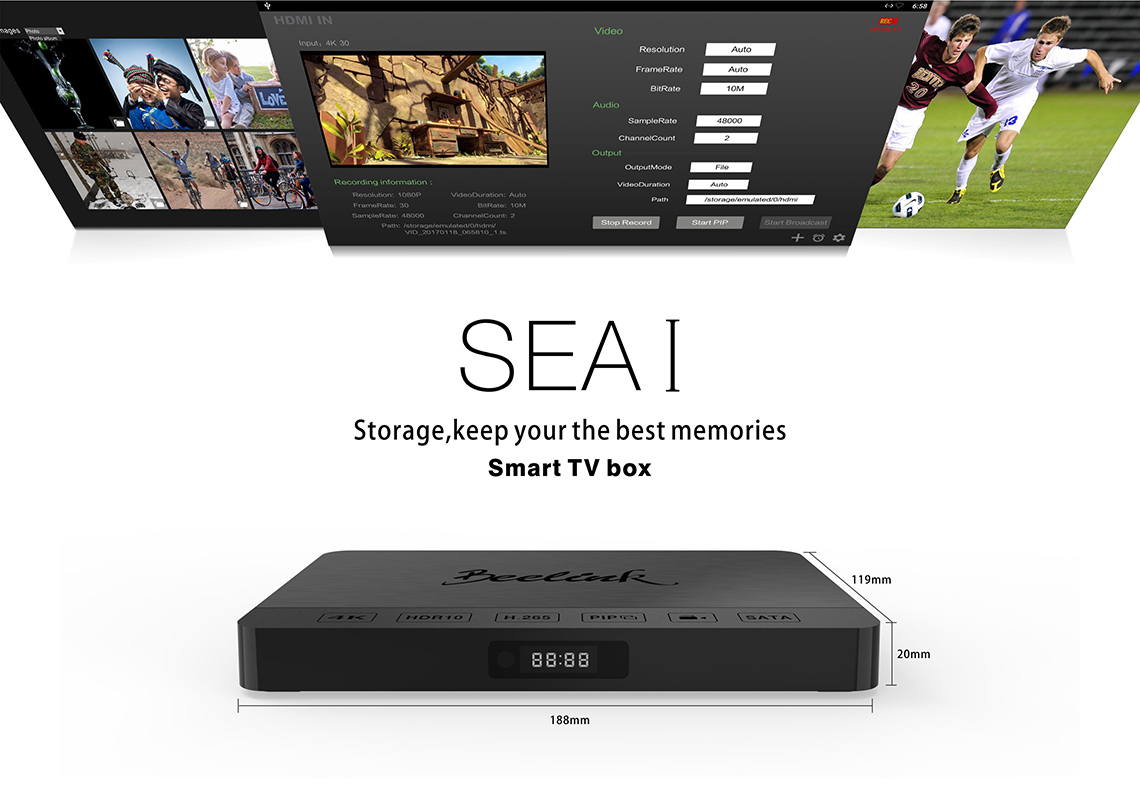

Product size: 188 * 119 * 20mm
