the german tube technology center presents:

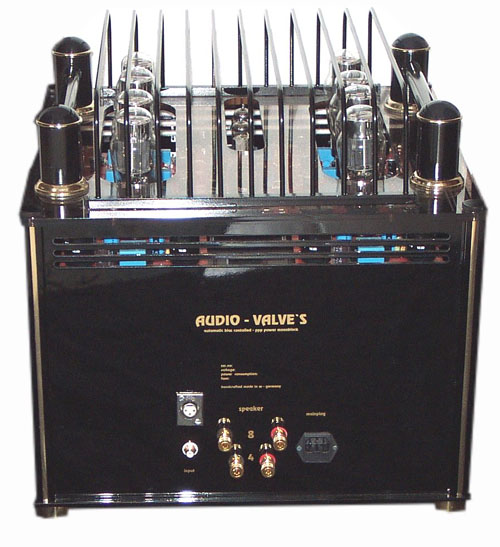

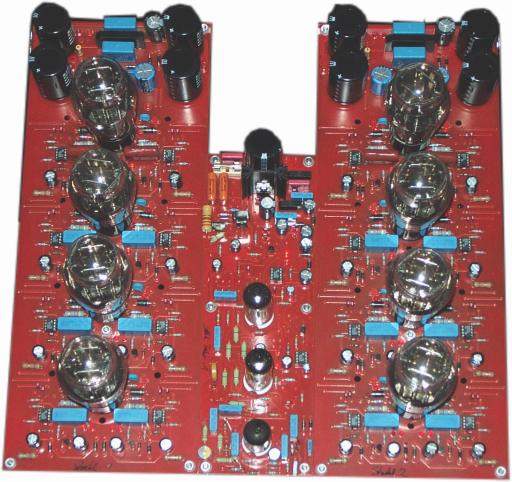

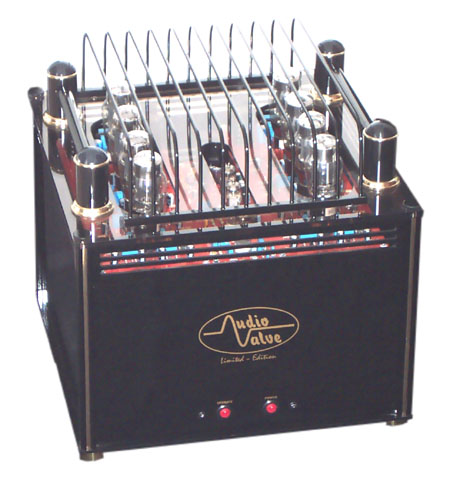

The super pur triode class A amplifier from AUDIO VALVE
[align=center]BALDUR 200 plus [/align]
tech. - data:
Concept: parallel push pull circut
auto. bias regl. for all power tubes IC controlled
Output Level: 34 V max. - at 8 ohm load
Power Output: 140 Watt
Power Bandwide: 4 - 34.000 Hz
Distortion: 0,2% - 100 Watt - 1 Khz
Noise: 1,2 mV
XLR and RCA Input: 47 Kohm (0,775 mV)
Output Impedance: 4 - 8 ohm
Power Consumption: 400 Watt
Line Voltage: 115 - up to 250 VAC
Valve Line - Up: 1*6EZ8, 2*QQE 03/12, 8*6EZ8
Dimensions: (w-d-h) 430 * 430 * 350 mm
The super pur triode class A amplifier from AUDIO VALVE
[align=center]BALDUR 200 plus [/align]
tech. - data:
Concept: parallel push pull circut
auto. bias regl. for all power tubes IC controlled
Output Level: 34 V max. - at 8 ohm load
Power Output: 140 Watt
Power Bandwide: 4 - 34.000 Hz
Distortion: 0,2% - 100 Watt - 1 Khz
Noise: 1,2 mV
XLR and RCA Input: 47 Kohm (0,775 mV)
Output Impedance: 4 - 8 ohm
Power Consumption: 400 Watt
Line Voltage: 115 - up to 250 VAC
Valve Line - Up: 1*6EZ8, 2*QQE 03/12, 8*6EZ8
Dimensions: (w-d-h) 430 * 430 * 350 mm
