CARY Audio..........

[vlasis]

XCITER Series


D/A USB converter

The Cary Audio Xciter DAC is the perfect match for the Xciter integrated amplifier! Compact desktop 192 kHz/32 Bit DAC featuring the new AKM4399 32-Bit DAC along with the new National Semiconductor metal can LME49713NA and LME49710NA output devices. These National Semi devices were specifically designed for Cary Audio Design. The Xciter DAC features a computer USB input along with optical input and two coaxial inputs. The inputs are selectable from the front panel. Front panel LED's will indicate the incoming sample rate up to 192 kHz.




Input Receiver AK4115 & CM108 Digital to Analog Converters AK4399 Digital Inputs 4 selectable inputs - Coaxial single-ended, Coaxial BNC, Toslink, USB
(Gold Plated) Analog Output RCA analog output Input Sample Rates Accepted 44.1KHz, 48KHz, 96KHz, 192KHz Bit Depths Accepted 16 – 24 bit, LPCM 2ch audio stream Capacitors Panasonic electrolytic capacitors, Tantalum capacitors & WIMA polyester film
and foil capacitors Power Transformer Dual C core power transformer Dynamic Range 117dB Signal to Noise Ratio 109dB Noise and Hum -101 dB below rated output Audio Output Level 2.0V RMS 200 Ohm output impedance Frequency Response 20Hz – 22KHz (44.1KHz) Wiring Printed Circuit Board and custom point to point cabling AC Cord 3 Conductor Shielded, Detachable AC Power Requirements 117 VAC @ 50/60 Hz
234 VAC @ 50/60 Hz






http://www.caryaudio.com/products/xciter/XciterDAC.html



[vlasis]

Απάντηση: CARY Audio..........

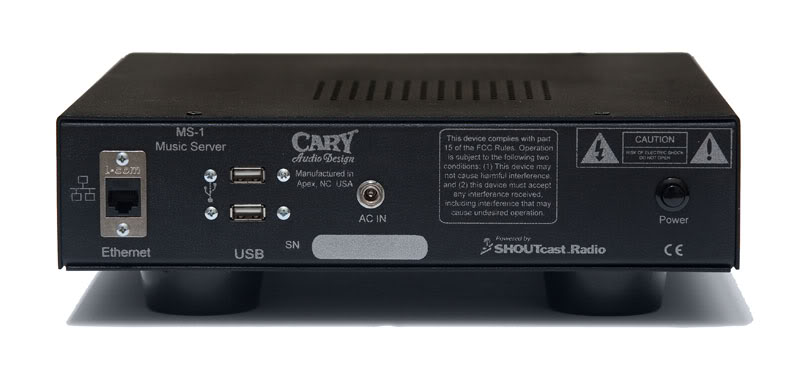

Music Server

Drive Mechanism 24x Slot-loading disc drive for music loading
Hard Drive 1 Terabyte SATA Formats .flac, mp3, .ogg, .wav, .m4a, .wv Digital Outputs USB 2.0 Digital Output Rate 24 bit 96 kHz Max Ports USB, Ethernet Power Input 100-240VAC, 50-60 Hz, auto-switching Power Consumption ~30 Watts Weight 8 lbs Dimensions 3.25" H x 11 " W x 12.5 " D



http://www.caryaudio.com/products/xciter/MS-1.html



[vlasis]

Απάντηση: CARY Audio..........

Cinema 11a
audio processor













">

The Cinema 11a is the ultimate in home theater audio processors. Utilizing the Cirrus Logic CS49700 series chipset and HDMI v1.3, the Cinema 11a has the ability to properly decode and playback both the raw bitstream and lossless linear PCM signals from the latest high resolution formats, including Dolby True HD, Dolby Digital Plus, DTS-HD High Resolution Audio, and DTS-HD Master Audio. The Cinema 11a has the ability to set separate Listener Profile speaker settings for playback of Music and Movies. The Cinema 11a uses the best available components in the audio circuit, resulting in extraordinary sound quality, which is a trademark of Cary Audio Design products. The Cinema 11a contains an HD radio tuner for the highest resolution signals from FM broadcasts. Without question, the Cinema 11a is the highest performing home theater processor available today.










http://www.caryaudio.com/products/cinema/cinema11a.html



[argi]

Απάντηση: CARY Audio..........

βαλε και τα μονομπλοκια και τα πολυκαναλα:126:



[vlasis]

Απάντηση: CARY Audio..........

παρε ναχεις Αργυριε τεκνο μου.....................

Circuit Type Solid State, Class A/B Power Output




1 x 500 watts @ 8 Ohms
from 20Hz to 20KHz
1 x 1000 watts @ 4 Ohms
from 20Hz to 20KHz
Input Sensitivity 1.4 Volts Frequency Response 10Hz - 50KHz +/- 0.1 dB Signal-to-Noise Ratio >100dB, "A" Weighted Input Impedance 44K Ohms RCA-unbalanced
91K Ohms - Balanced (XLR)
Voltage Gain 28 dB AC Power Requirements 117/234 Volts AC @ 50/60 Hz Break-In Time 100 hours of playing time Finish


Black epoxy coated steel chassis
Silver anodized aluminum faceplate
(black optional) Weight 78 lbs Dimensions 7” H x 17.7”W x 19.5 ”D Audio Input 1 RCA, 1 XLR Audio Output 1 pair Heavy-duty, gold-plated binding posts THD Less than 0.05% at rated output Crosstalk Greater than -90dB from 20Hz to 20KHz Damping Factor Greater than 400 from 10Hz to 400Hz Slew Rate 50V/mSec Remote Trigger 3-32v DC at 5mA or greater
