Leben Hi-Fi Co. is a Japanese manufacturer of rare hifi. Mr. Hyoudo, who owns Leben Hi-Fi Co., is a multi-talented individual. He was a professional musician, a well-known audiophile, and a skilled hifi engineer, having long experience in designing famous amplifiers under Luxman Corporation, an important player in the Japanese high-end market, besides their mass-market products - since 1925.



Mr. Hyoudo is nowadays ranked as one of the best seven tube audio engineers in Japan. He is also a well-known collector of some of the world's premium tubes such as 3CSS, 12AT7, E288CC, 6L6GC (5881), all of which are (will be) used in Leben amplifiers at their best capabilities based on Leben's technology.



Leben is also a specialized manufacturer of electrical and electronic parts such as power transformers, switches, and so on, which are the main products of Leben. Their hifi amplifiers are more of a product of passion, and not many models are made. Several people in Japan have actually gathered and set up a fan club called "Leben Audio Lovers' Club". Members are always waiting for a new model from Leben, which amazes them each time.



Leben is also a specialized manufacturer of electrical and electronic parts such as power transformers, switches, and so on, which are the main products of Leben. Their hifi amplifiers are more of a product of passion, and not many models are made. Several people in Japan have actually gathered and set up a fan club called "Leben Audio Lovers' Club". Members are always waiting for a new model from Leben, which amazes them each time.



In light of these circumstances, Mr. Hyoudo has started in recent years to produce lower-cost amplifiers to allow more music lovers the possibility to enjoy Leben's tube sound without investing too much - such as the models CS-200, CS-250, and CS-300.



And to be introduced first in Singapore will be the Leben CS-300, an integrated amplifier with 12 watts of glorious tube power - through the Russian Sovtek EL84/6BQ5 tubes x 4, well-known for high sound quality even at its small size. Driver circuit using GE 5751 (premium version of 12AX7A) - a very stable and reliable quality. Five line inputs, and full function ! Tape monitor, headphone output, speaker/headphone selector, variable output impedance (4/6/8 ohms). Retro looks reminiscent of older McIntosh equipment, but modern frequency response from 15hz to 100Khz, no difficulties matching SACD's or DVD-A's standards.



Watch for it. Authentic Made in Japan, and even with high quality parts and long experience behind it, a nice price. It definitely helps that Leben is a manufacturer of transformers, switches, and other parts. In the last ten months, over 380 sets have already been sold in Japan, as well as in China and Taiwan, currently the biggest market outside Japan.

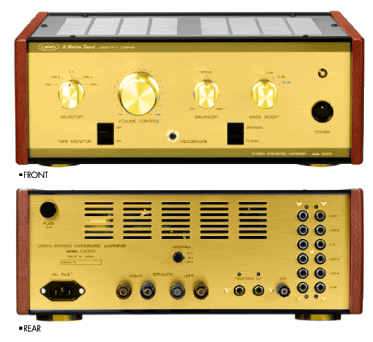

Leben Hi-Fi CS-300 Integrated Amplifier




Μηνύματα
3.061
Reaction score
632
Leben Hi-Fi CS-300 Integrated Amplifier


CS- 300 is equipped with Russian finnest Tube EL-84 produced by "SOVTEK" ,
which is well known for high sound quality versus its small size.

For Driver circuit, we used GENERAL ELECTRIC 5751(pr4emium version of 12AX7A) which
has very stable and reliable quality.

FIVE INPUTS
CS-300 IS EQUIPPED WITH 5 LINE INPUTS PLUS TAPE MONITOR

FULL FUNCTIONS FOR INTEGRATED AMP.
1. TAPE MONITOR
2. HEADPHONE OUTPUT.
3. BASE BOOST SWITCH
4. SPEAKER/HEADPHONE SELECTOR
5. VARIABLE OUTPUT IMPEDANCE: 4/6/8 OHMS.

CS-300 SPECIFICATIONS

TUBES EQUIPPED EL84/6BQ5(SOVTEK) X 4
5751(G.E.) X 2
OUTPUT POWER 12W X 2
FREQUENCY RESPONSE 15Hz - 100KHz (-2 dB)
DISTORTION 0.7% (10W)
INPUT SENSITIVITY 600mV
OUTPUT IMPEDANCE 4/6/8 Ohms (Selectable)
POWER CONSUMPTION 65W
WEIGHT 10 Kgs.
DIMENSIONS 360(W) X 270(D) X 140(H) mm
ATTACHMENT Detachable AC Power Cable x 1
