retail price $599

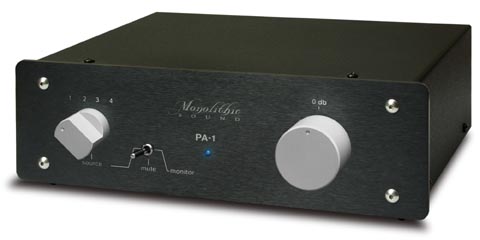

The PA1 Line Stage uses a simple design, combining both passive and active circuitry for the best compromise between sonic purity and needed gain.
The volume control works passively until the center detent is reached. At this point, the signal is coupled with a Class A, dual-mono amplifier for up to 6db gain. Unlike typical line stages, the PA1 only amplifies the signal when gain is needed.
Connections include four inputs, one tape/processor loop and two pair of outputs.
Upgrades: HC1b Power Supply
Specifications:
Input Impedence: 20k
Frequency Response: DC~100khz
Gain: 6db
Power Supply: 16 VAC (included)
Size: 8.5" x 6" x 2.5"
Weight: 6 lbs
Warranty: 1 year parts & labor
retail price $279

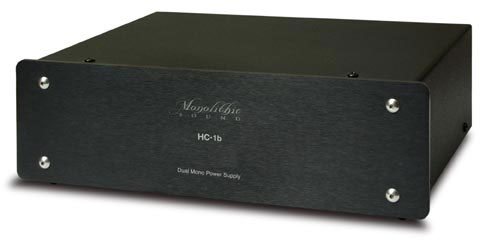

The HC1b Dual Mono Supply is a high-performance upgrade for use with the PA1 Line Stage or PS1 | PS2 Phono Stages.
Two 1.5A transformers (one per channel) are used to improve dynamics, bass control and imaging. Features include detachable Input/Output AC cables and internally switchable input voltage (115~230 volts).
Specifications:
AC Input Voltage: 115~230 Volts / 50~60 hz
AC Output Voltage: 2 x 16 Volts @ 1.5A
Size: 8.5" x 6" x 2.5"
Weight: 8 lbs
Warranty: 1 year parts & labor
retail price $599

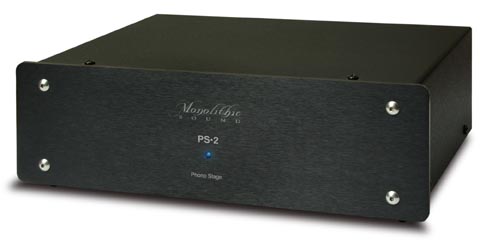

The new PS2 Phono Stage is our "New & Improved" version of the highly acclaimed PS1. Key components have been upgraded for even better performance and gain has been increased for use with extremely low output moving coil cartridges. Rear panel DIP switches are used to select settings for resistive load, capacitance, gain and subsonic filter. This flexibility allows for use with almost any line stage and MM/MC phono cartridge. The new PS2 will feel right at home matched with the best of turntable/cartridge combinations.
Upgrades: HC1b Power Supply
Specifications:
Loading Resistance: 47k, 10k, 1k, 100 ohms
Capacitance: 100pf, 270pf, 370pf
Gain: 42db, 48db, 54db, 60db
Power Supply: 16V AC (included)
Dimensions: 8.5" x 6" x 2.5"
Weight: 6 lbs
Warranty: 1 year parts & labor
