Αρχες των 80s απεκτησα τον πρωτο μου ενισχυτη.

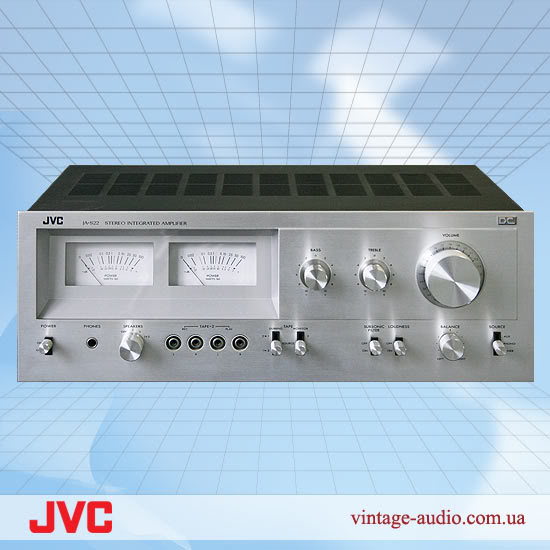

JVC JA-S22
Integrated Amplifiers
Output Power: 43 watts RMS per channel into 8 ohms (1 kHz, 0.02% THD)
50 watts RMS per channel into 4 ohms (1 kHz, 0.05% THD)
40 watts per channel, min. RMS, both channels driven, into 8 ohms, from 20Hz to 20,000Hz with no more than 0.02% total harmonic distortion
Total Harmonic Distortion (1 kHz): 0.01% at 40W Output 0.02% at 1W Output
Intermodulation Distortion: 0.01% at 40W Output
Damping Factor: 30 (20 — 20kHz, 8 ohms)
Load Impedance: 4—16 ohms (SYSTEM 1 or 2) 8—16 ohms (SYSTEM 1 + 2)
Input Sensitivity (Impedance):
Phono: 2.5mV (47k ohms)
Tuner: 160mV (50k ohms)
AUX: 160mV (50k ohms)
Tape play: 160mV (50k ohms)
Phono Overload Capacity: 200mV (RMS)
RIAA Phono Equalization: ±0.3dB from RIAA Curve
Output Level:
Tape Rec: 160mV
DIN REC: 30mV (80k ohms)
Signal-to-Noise Ratio (RMS)
Phono (IHF A Network): 80dB
Tuner, AUX, Tape Play (IHF A Network): 100dB
Frequency Response: 5Hz—100 kHz (+0, -2dB)
Tone Controls:
Bass: 100Hz ±8dB
Treble: 10 kHz ±8dB
Subsonic Filter: 6dB/oct. at 18Hz
Loudness Control (-30dB Volume Control): +6dB at 100Hz, +4dB at 10 kHz
Dimensions (H x W x D, mm): 149 x 420 x 334
Weight: 8.5kg
Καναμε καλη παρεα μεχρι το 95 που παρεδωσαν πνευμα κατι STK εξοδου και μερικες αντιστασεις.
Ο δικος σας ποιος ηταν?
JVC JA-S22
Integrated Amplifiers
Output Power: 43 watts RMS per channel into 8 ohms (1 kHz, 0.02% THD)
50 watts RMS per channel into 4 ohms (1 kHz, 0.05% THD)
40 watts per channel, min. RMS, both channels driven, into 8 ohms, from 20Hz to 20,000Hz with no more than 0.02% total harmonic distortion
Total Harmonic Distortion (1 kHz): 0.01% at 40W Output 0.02% at 1W Output
Intermodulation Distortion: 0.01% at 40W Output
Damping Factor: 30 (20 — 20kHz, 8 ohms)
Load Impedance: 4—16 ohms (SYSTEM 1 or 2) 8—16 ohms (SYSTEM 1 + 2)
Input Sensitivity (Impedance):
Phono: 2.5mV (47k ohms)
Tuner: 160mV (50k ohms)
AUX: 160mV (50k ohms)
Tape play: 160mV (50k ohms)
Phono Overload Capacity: 200mV (RMS)
RIAA Phono Equalization: ±0.3dB from RIAA Curve
Output Level:
Tape Rec: 160mV
DIN REC: 30mV (80k ohms)
Signal-to-Noise Ratio (RMS)
Phono (IHF A Network): 80dB
Tuner, AUX, Tape Play (IHF A Network): 100dB
Frequency Response: 5Hz—100 kHz (+0, -2dB)
Tone Controls:
Bass: 100Hz ±8dB
Treble: 10 kHz ±8dB
Subsonic Filter: 6dB/oct. at 18Hz
Loudness Control (-30dB Volume Control): +6dB at 100Hz, +4dB at 10 kHz
Dimensions (H x W x D, mm): 149 x 420 x 334
Weight: 8.5kg
Καναμε καλη παρεα μεχρι το 95 που παρεδωσαν πνευμα κατι STK εξοδου και μερικες αντιστασεις.
Ο δικος σας ποιος ηταν?
