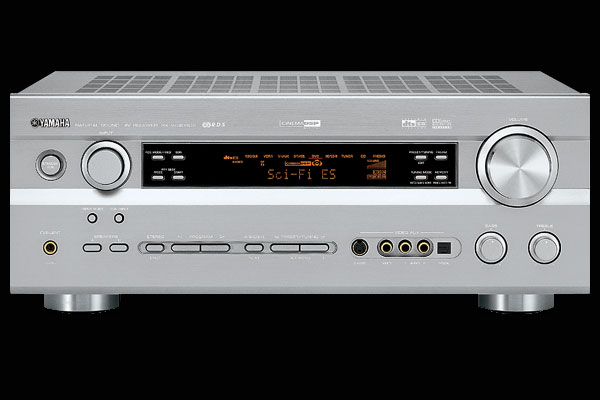

YAMAHA RX-V640 RDS 6.1

[kostis]

YAMAHA RX-V640 RDS 6.1
Ελάχιστες ώρες λειτουργίας. Άριστη κατάσταση.
Έχει manuals, Remote control, 2 antenna.
ΤΙΜΗ: ΜΟΝΟ 100€
ΤΗΛ. 6976999447
---------------------------------------------------------------------

Specifications

Spoiler

MAIN, 20Hz-20kHz, 0.06% THD, 8Ω 85W + 85W
CENTER, 20Hz-20kHz, 0.06% THD, 8Ω 85W + 85W
REAR, 20Hz-20kHz, 0.06% THD, 8Ω 85W + 85W
MAIN, 1kHz, 0.06% THD, 8Ω 105W + 105W
CENTER, 1kHz, 0.06% THD, 8Ω 105W + 105W
REAR, 1kHz, 0.06% THD, 8Ω 105W + 105W
MAIN, 8/6/4/2 Ω 95/120/160/190W

8Ω 1.1dB

MAIN L/R, 20Hz-20kHz, 8Ω 80 or more

CD, etc 150mV/47kΩ

CD, etc (Effect on) 2.2V

OUT (REC) 150mV/1.2kΩ

PRE OUT (MAIN, etc) 2.2V/1.2kΩ

Mono 4.0V/1.2kΩ

CD, etc, (40mV, 8Ω) 340mV/560Ω

CD, etc, MAIN L/R +0/-3.0dB

Boost/Cut +/-10dB (50Hz)

Turnover Frequency 350Hz

SUBWOOFER OUT: LPF fc=90Hz, 18dB/oct

MAIN, CENTER, REAR SP SMALL:HPF fc=90Hz, 12dB/oct

CD, etc, to MAIN SP OUT L/R (1V) 0.06%

CD, etc, Input Shorted (Effect off) 100dB

MAIN, SP OUT 150uV

CD, etc, Input 5.1kΩ Shorted, 1kHz 60dB

Muting - ∞

Composite Video Signal Level 1Vp-p/75Ω

Y 1Vp-p/75Ω

C 0.286Vp-p/75Ω

Cb/Cr 0.7V/75Ω

Video Maximum Input Level 1.5Vp-p

Video Signal-to-Noise Ratio 50dB

Composite Video Signal 5Hz-10MHz, -3dB

S-Video Signal 5Hz-10MHz, -3dB

Component Signal DC-30MHz, -3dB

Tuning Range 87.5 to 107.9MHz

Mono (1kHz, 100% Mod) 2.0uV (17.3dBf)

Stereo (1kHz, 100% Mod) 25uV (39.2dBf)

Selectivity (400kHz) 70dB

Mono/Stereo (IHF) 76/70dB

Mono/Stereo (1kHz) 0.2./0.3%

1kHz 45dB

20Hz-15kHz +0.5/-2.0dB

FM 100% Mod. 1kHz 550mV

Antenna Input 75Ω unbalanced

Usable Sensitivity 300uV/m

AM 30% Mod. 1kHz 150mV

CD Player Signal-to-Noise Ratio 52dB

Antenna Loop Antenna

Dimensions (W x H x D) 435 x 171 x 390

Weight 13 Kg
