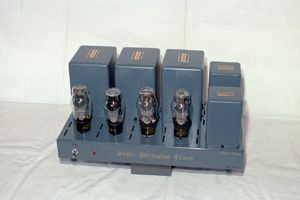

TM-9501PCS 6AS7G A1PP Stereo Main Amplifier
Technical Characteristics
Vacuum Tube Stereo Main Amplifier
Input Terminal : RCA pin jack
Input Sensitivity / impedance : 1V / 3.3Kohm
Power Output : 8W x 2
Harmonic Distortion : Less Than 1.0% / 3W
Frequency Response : 10Hz ... -1dB , 20KHz-3dB
Residual Noise : Less Than 1mV 8ohm
Power Consumption : 130VA
Power : 100V 50/60Hz
Dimension : W44.5 x H22.5 x D25.0cm
Weiht : 25.0Kg

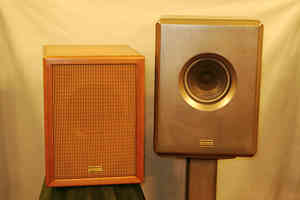

SP-8716 16cm Full Range Speaker System
SP-8716 Special Type Dimension
Pair
Dimension W32.0 x H42.0 x D32.0cm
Weight 39Kg
Option
All Carbon Stand 25Kg Pair
ACP-8801 Record Player System
Attachments MC-6310 MC Cartridge
Technical Characteristics
Drive system : Belt drive
Drive power : Induction motor
The material : Quantity purity carbon
Installation size : W88.0 x D40.0 x H31.5 cm (an air-pump box is not included.)
Air-pump box size : W30.5 x D30.5 x H40.0cm

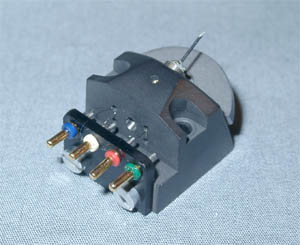

MC-6310 MC Cartridge
Technical Characteristics
OGeneration system : Moving coil type
Output voltage : 0.1mV(5cm/sec 1KHz)
Stylus press : 1.5--2.0g
Impedance : 2.0 ohm
Από την Ιαπωνία
