Canary Audio Products

[comtal]

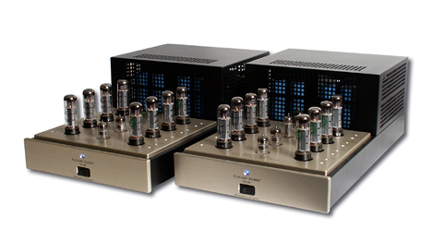

CA-160 Mono Blocks Power Amplifier

Specifications for CA-160
Rated Power Output: 140 Watts RMS (Ultra Linear Mode)
100 Watts RMS (Triode Mode)
Input Sensitivity: 0.60 Volts for full output (Ultra Linear Mode)
0.53 Volts for full output (Triode Mode)
Input Impedance: 470,000 Ohms
Frequency Response: +/- 1dB from 10 Hz to 50,000 Hz (Ultra Linear Mode)
+/- 1dB from 10 Hz to 40,000 Hz (Troide Mode)
Total Harmonic Distortion: < 0.06% (Ultra Linear Mode)
< 0.5% (Troide Mode)
Signal-to-Noise Ratio: -77 dB below 1 Watt (Ultra Linear Mode)
-78 dB below 1 Watt (Triode Mode)
Damping Factor: 16
Power Consumption: 320 Watts (true RMS)
Output Impedance: 4, 8 Ohm
Tube Complement (per channel): 8 x EL34 / 6CA7
2 x 6922
1 x 6GU7
1 x 12BH7
Dimensions (per channel): 13" W x 24" D x 8.5" H
Net Weight (per channel): 65 lbs
Warranty: 3 Years Parts and Labor

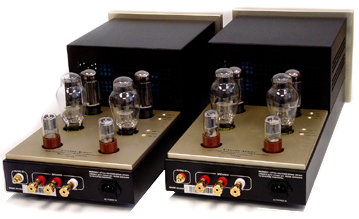

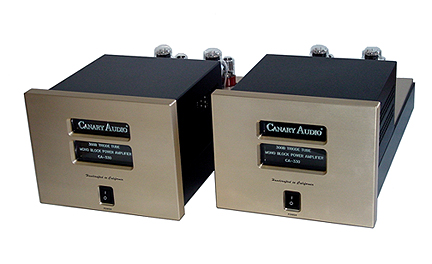

CA-330 Mono Blocks Power Amplifier

Specifications for CA-330
Rated Power Output: 26 Watts RMS
Input Sensitivity: 0.72 Volts for full output
Input Impedance: 150,000 Ohms
Frequency Response: +/- 1dB from 10 Hz to 68,000 Hz
Total Harmonic Distortion: < 0.4%
Signal-to-Noise Ratio: -84 dB below 1 Watt
Damping Factor: 13
Power Consumption: 240 Watts (true RMS)
Output Impedance: 4, 8 Ohm
Tube Complement (per channel): 2 x 300B
2 x 6SN7GTB
2 x 5U4GB
Dimensions (per channel): 11.5" W x 23.5" D x 9" H
Net Weight (per channel): 65 lbs
Warranty: 3 Years Parts and Labor

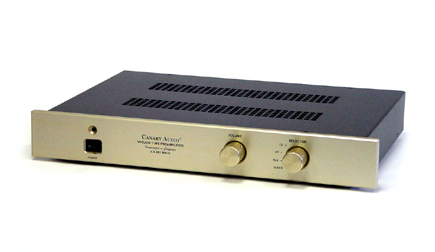

CA-601 MK-II Stereo Preamplifier

Specifications for CA-601 MK-II
Input Impedance: 50,000 Ohms min, 95,000 Ohms max.
Output Impedance: 650 Ohms
Maximum Gain: 13.5 dB
Frequency Response: +/- 1 dB from 10 Hz to 64,000 Hz
Hum and Noise: 80 dB
Maximum Output Voltage before clipping: 130 Volts
Total Harmonic Distortion: < 0.06%
Power Consumption: 22 Watts (true RMS)
Tube Complement: 2 x 6922
1 x 6CG7
Dimensions: 18.5" W x 13" D x 2.5" H
Net Weight: 18 lbs
Warranty: 3 Years Parts and Labor
