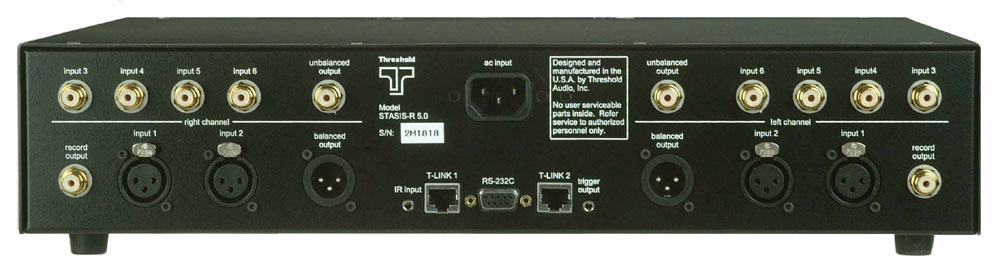

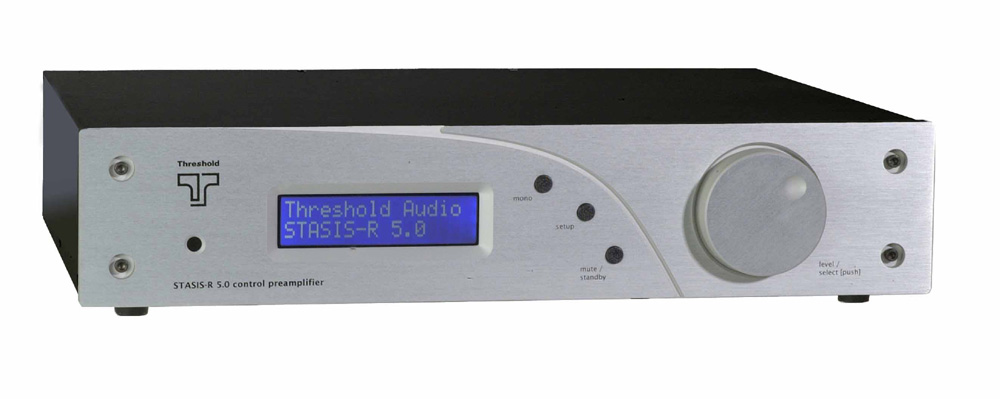

STASIS-R 5.0 Stereo Control Preamplifier
5.0 Specifications
Frequency Response: DC-100kHz; +/- 0.5dB 20Hz-20kHz
Distortion: 0.02% at 1kHz
Gain: 12 dB
Signal-to-Noise Ratio: Greater than 100dB (Ref. 1V input, maximum gain, 20kHz bandwidth)
Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
Input Sensitivity: 1.12V RMS
Output Impedance: less than 100 Ohms
Output level: maximum 16Vrms balanced, 8Vrms unbalanced
Trigger output: 12V for on/off control of ancilary equipment
Dimensions & Weight
17.1'' W x 13.5'' D x 3.5'' H (3.75'' H including rubber feet)
43.5 cm W x 34.3 cm D x 8.9 cm H (9.6 cm H including rubber feet)
Shipping weight: 20 lbs., 9 kg
Net weight: 14 lbs., 7 kg
STASIS 8.0 Stereo Power Amplifier
STASIS 8.0 Features
High-current STASIS design easily drives low-impedance reactive loads
Fully complementary circuitry
Low-noise solid state design
All-discrete components
Sweet, detailed reproduction
No transistor glare
Direct coupled input to output for tight extended bass, solid bottom-end slam
High-speed design resolves complex musical passages
Balanced inputs provide high common-mode rejection for lower noise
Premium components such as military-spec precision resistors, computer-grade capacitors, military-grade glass-epoxy circuit boards
Gold-plated RCA and XLR connectors ensure optimum signal transfer and extended life
Cardas gold-plated binding posts
Traditional Threshold rugged chassis construction
High reliability
Unsurpassed precision and sound quality
Custom toroidal power transformer
Separate power reserves for voltage and current gain stages
Modular construction
Hand assembled in the USA
Rack-mountable design
Attractive polished silver anodized aluminum front panel
8.0 Specifications
Nominal Power Output (20Hz20kHz)
200 Watts per channel at 8 Ohms
400 Watts per channel at 4 Ohms
Frequency Response: DC- 50kHz
Distortion: 0.02% at 1kHz, at rated output power
Voltage Gain: 28 dB
Input Impedance: 22k ohm (RCA), 600 ohm (XLR)
Input Sensitivity: 1.58V RMS for full power output
Output Impedance: less than 0.05 ohm from 20Hz20kHz
Damping Factor: greater than 160 for 8 ohm load, 20Hz20kHz, at 1 Watt
Dimensions and Weight
19'' W x 9.3'' H x 19.8'' D
48.25 cm W x 23.6 cm H x 50.3 cm D
Shipping Weight: 98 lbs., 45 kg
Net Weight: 88 lbs., 40 kg
5.0 Specifications
Frequency Response: DC-100kHz; +/- 0.5dB 20Hz-20kHz
Distortion: 0.02% at 1kHz
Gain: 12 dB
Signal-to-Noise Ratio: Greater than 100dB (Ref. 1V input, maximum gain, 20kHz bandwidth)
Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
Input Sensitivity: 1.12V RMS
Output Impedance: less than 100 Ohms
Output level: maximum 16Vrms balanced, 8Vrms unbalanced
Trigger output: 12V for on/off control of ancilary equipment
Dimensions & Weight
17.1'' W x 13.5'' D x 3.5'' H (3.75'' H including rubber feet)
43.5 cm W x 34.3 cm D x 8.9 cm H (9.6 cm H including rubber feet)
Shipping weight: 20 lbs., 9 kg
Net weight: 14 lbs., 7 kg
STASIS 8.0 Stereo Power Amplifier
STASIS 8.0 Features
High-current STASIS design easily drives low-impedance reactive loads
Fully complementary circuitry
Low-noise solid state design
All-discrete components
Sweet, detailed reproduction
No transistor glare
Direct coupled input to output for tight extended bass, solid bottom-end slam
High-speed design resolves complex musical passages
Balanced inputs provide high common-mode rejection for lower noise
Premium components such as military-spec precision resistors, computer-grade capacitors, military-grade glass-epoxy circuit boards
Gold-plated RCA and XLR connectors ensure optimum signal transfer and extended life
Cardas gold-plated binding posts
Traditional Threshold rugged chassis construction
High reliability
Unsurpassed precision and sound quality
Custom toroidal power transformer
Separate power reserves for voltage and current gain stages
Modular construction
Hand assembled in the USA
Rack-mountable design
Attractive polished silver anodized aluminum front panel
8.0 Specifications
Nominal Power Output (20Hz20kHz)
200 Watts per channel at 8 Ohms
400 Watts per channel at 4 Ohms
Frequency Response: DC- 50kHz
Distortion: 0.02% at 1kHz, at rated output power
Voltage Gain: 28 dB
Input Impedance: 22k ohm (RCA), 600 ohm (XLR)
Input Sensitivity: 1.58V RMS for full power output
Output Impedance: less than 0.05 ohm from 20Hz20kHz
Damping Factor: greater than 160 for 8 ohm load, 20Hz20kHz, at 1 Watt
Dimensions and Weight
19'' W x 9.3'' H x 19.8'' D
48.25 cm W x 23.6 cm H x 50.3 cm D
Shipping Weight: 98 lbs., 45 kg
Net Weight: 88 lbs., 40 kg
