2 τεμάχια, ευρώ 120
Rated impedance: 8 ohms
Minimum Impedance: 8.5 ohms @ 9.0 khz
D.C. Resistance: 6.1 ohms
AES Power Rating: 25 Watts
Program Power: 50 Watts
Sensitivity: (1W/1m) 104dB SPL
Frequency Response: 2.5kHz - 20kHz
Recommended Crossover: 5.0 kHz or higher
Dispersion (H x V): 100° X 60°
Voice Coil Diameter: 1.5" / 37.6mm
Magnetic Assembly Weight: 3.2 lb. / 1.45 kg.
Flux Density: 1.75T
BL Factor: 6 N/A

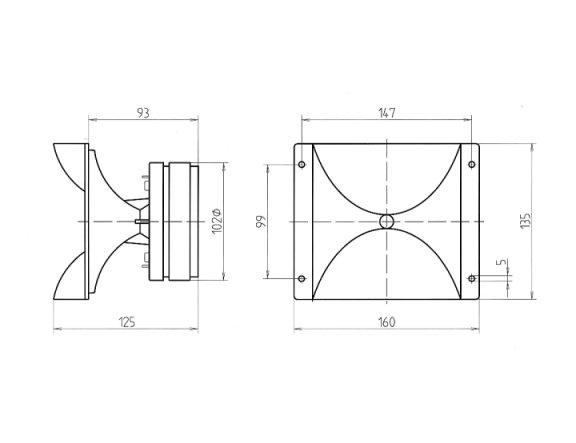

Mounting Information
Overall Dimensions: 6.3" x 5.3" / 160mm x 135mm
Overall Depth: 4.9" / 125mm
Baffle Cutout Dimensions: 4.72" X 5.12" / 120mm X 130mm
Net Weight: 3.75 lb. / 1.7 kg.
Materials
Diaphragm: Aluminum
Voice Coil: Edgewound Aluminum Ribbon
Voice Coil Former: Kapton
Magnet: Ferrite
Rated impedance: 8 ohms
Minimum Impedance: 8.5 ohms @ 9.0 khz
D.C. Resistance: 6.1 ohms
AES Power Rating: 25 Watts
Program Power: 50 Watts
Sensitivity: (1W/1m) 104dB SPL
Frequency Response: 2.5kHz - 20kHz
Recommended Crossover: 5.0 kHz or higher
Dispersion (H x V): 100° X 60°
Voice Coil Diameter: 1.5" / 37.6mm
Magnetic Assembly Weight: 3.2 lb. / 1.45 kg.
Flux Density: 1.75T
BL Factor: 6 N/A
Mounting Information
Overall Dimensions: 6.3" x 5.3" / 160mm x 135mm
Overall Depth: 4.9" / 125mm
Baffle Cutout Dimensions: 4.72" X 5.12" / 120mm X 130mm
Net Weight: 3.75 lb. / 1.7 kg.
Materials
Diaphragm: Aluminum
Voice Coil: Edgewound Aluminum Ribbon
Voice Coil Former: Kapton
Magnet: Ferrite
