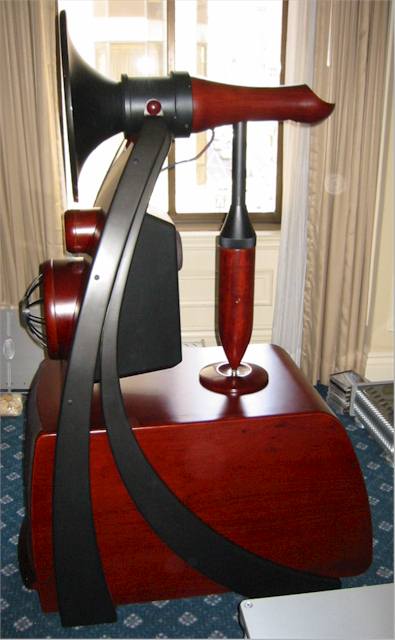

Πίσω στο 2003... Με 68 χιλιάρικα ψωνίζαμε το Calix Phoenix Signature Grand

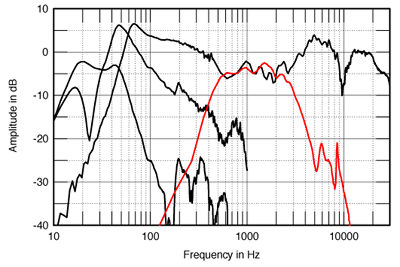

Fig.3 Calix Phoenix Grand, acoustic crossover on tweeter axis at 50", corrected for microphone response, of woofer-tweeter module (black) and horn midrange (red), with the nearfield subwoofer and port responses plotted below 1kHz and 625Hz, respectively, and the complex sum of the upper woofer and port responses plotted below 450Hz (black).

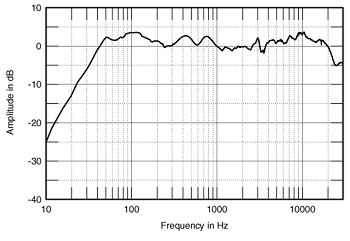

Fig.4 Calix Phoenix Grand, anechoic response on tweeter axis at 50", averaged across 30 degrees horizontal window and corrected for microphone response, with the complex sum of the nearfield upper woofer and port responses plotted below 400Hz and the complex sum of the nearfield subwoofer and port responses plotted below 1kHz.
Από τις πλέον μπουρδουκλωμένες και κακοχρονισμένες βηματικές αποκρίσεις σε συνδυασμό με το waterfall:

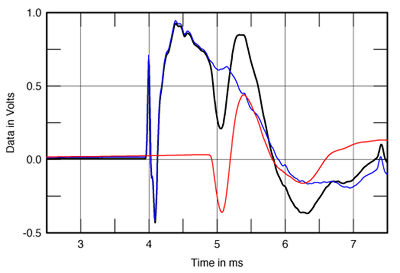

Fig.6 Calix Phoenix Grand, step response on tweeter axis at 50" (black), and of tweeter-woofer module (blue) and midrange horn (red). (5ms time window, 30kHz bandwidth.)

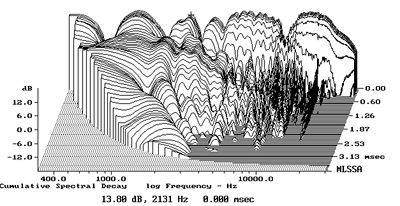

Fig.7 Calix Phoenix Grand, cumulative spectral-decay plot at 50" (0.15ms risetime).
Fig.3 Calix Phoenix Grand, acoustic crossover on tweeter axis at 50", corrected for microphone response, of woofer-tweeter module (black) and horn midrange (red), with the nearfield subwoofer and port responses plotted below 1kHz and 625Hz, respectively, and the complex sum of the upper woofer and port responses plotted below 450Hz (black).
Fig.4 Calix Phoenix Grand, anechoic response on tweeter axis at 50", averaged across 30 degrees horizontal window and corrected for microphone response, with the complex sum of the nearfield upper woofer and port responses plotted below 400Hz and the complex sum of the nearfield subwoofer and port responses plotted below 1kHz.
Από τις πλέον μπουρδουκλωμένες και κακοχρονισμένες βηματικές αποκρίσεις σε συνδυασμό με το waterfall:
Fig.6 Calix Phoenix Grand, step response on tweeter axis at 50" (black), and of tweeter-woofer module (blue) and midrange horn (red). (5ms time window, 30kHz bandwidth.)
Fig.7 Calix Phoenix Grand, cumulative spectral-decay plot at 50" (0.15ms risetime).
